Specification:

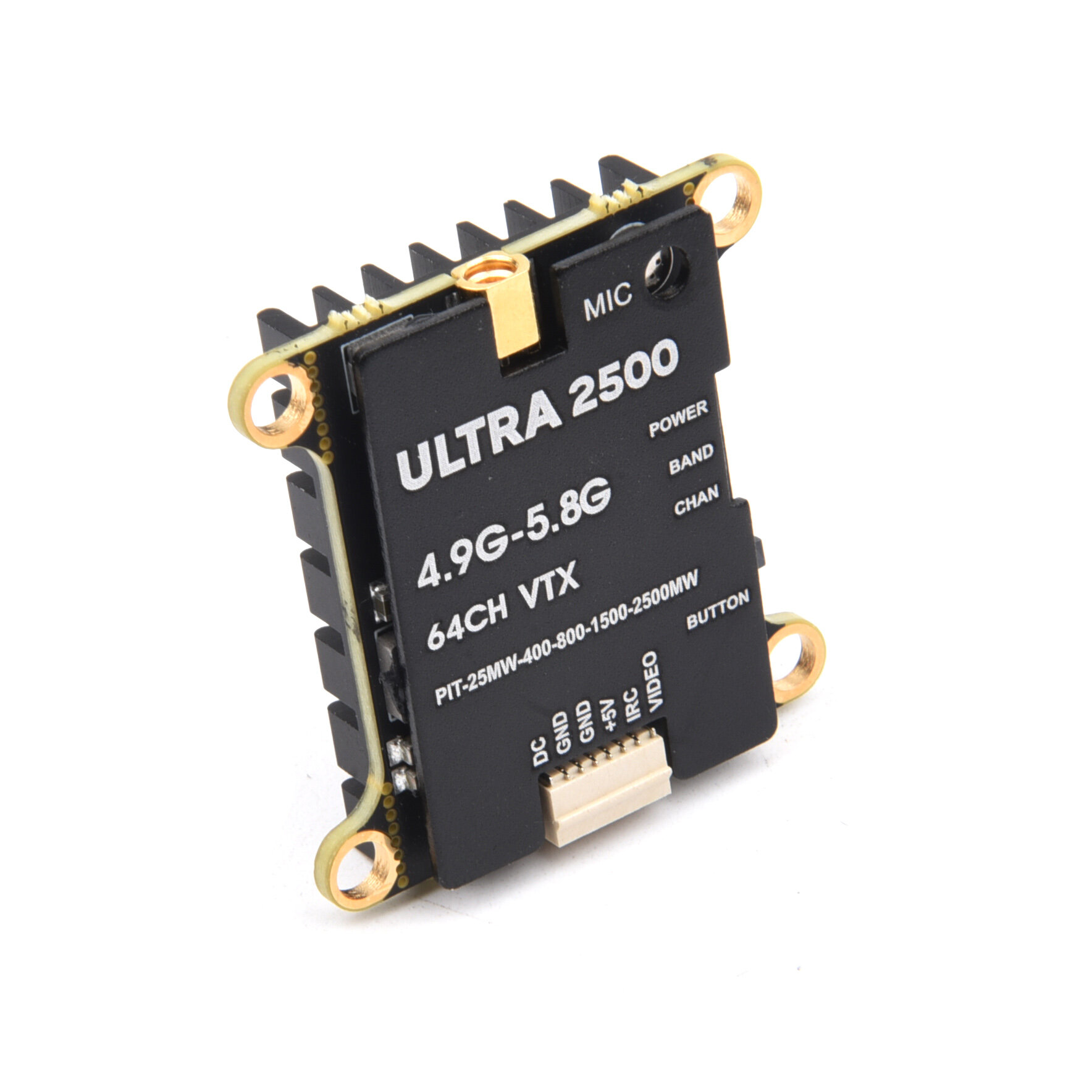

Model: Ultra2500 64CH VTX
Input : DC 7-36V(2-8S Battery)
Output: 5V@600mA(Power 5V to camera)
Input impedance: 75Ω
Protocol: IRC Tramp
Antenna connector: MMCX connector
Cable connector: GH1.25-6P connector
Output power: 25mW/400mW/800mW/1500mW/2500mW/Pit mode
Frequency tables: 64 CH
Video format: PAL/NTSC
Microphone: Built in microphone
Size: 36.5mmx36.5mmx12mm
Weight: 15g(without cable)
Mounting holes: 30.5mmx30.5mm(M3)
Features:
1. 64CH VTX super-power,suitable for Long Rang fligh with good stability.
2. Six power levels: 25mW/400mW/800mW/1500mW/2500mW/Pit mode.
3. Two-layer board cooling structure,separate power BEC and main-board,reducing and shielding from the insinal interference.
4. Temperature control protection function that can prevent high temperature burning.
5. Wide input, supports 7V-36V input.
6. VTX control protocol is IRC Tramp,supports OSD parameter adjustment.
7. VTX built in microphone,real-time return of Drone"s sounds.
8. Has 3 regional frequency tables to meet the needs of various regions.
9. One function buttons, three indicator lights, easy to operate.
10. Mounting holes is 30.5mmx30.5mm.
NOTE:
For BetaFligh fligh controller firmware above BetaFligh 4.1.0,you need upload a VTX Table to the fligh controller before using the remote control to modify the video transmitter parameters normally.
WARNING:
1. Install antenna before use.
2.To prevent overheating. provide constant airfiow and a well ventilated environment.Install a cooling fan if operating in confined conditions.
3. The 5V Output is just used for a Camera/Cooling Fan! Don"t connect Power Input /Battery to 5V Output port. Otherwise the VTX will be damaged.
Pasckage included:
1 x Ultra 64CH VTX
1 x MMCX connector to SMA connector 82cm
1 x GH 1.25-6P connector cables 150mm
